While Pivotal Tracker provides teams with a medium for data-rich projects, many teams would like a curated, high-level picture of their projects & tasks. To better visualize your Pivotal Tracker projects in a consumable, simple to understand roadmap, users can create a one-way connection with Pivotal Tracker which allows them to pull content into their roadmaps and visualize it against other projects across all the tools your team uses on a daily basis.
Getting Started with Pivotal Tracker
Linking Roadmunk to your Pivotal Tracker Instance
In order to connect your Roadmaps to your instances & projects in Pivotal Tracker, an Account Admin on your Roadmunk account will need to establish the connection between Roadmunk and Pivotal Tracker first. Once this connection is established, users will be able to view and select this integration option during their on-roadmap setup and save both instance & credential details for future setup of additional roadmaps.
Create a New Pivotal Tracker Integration

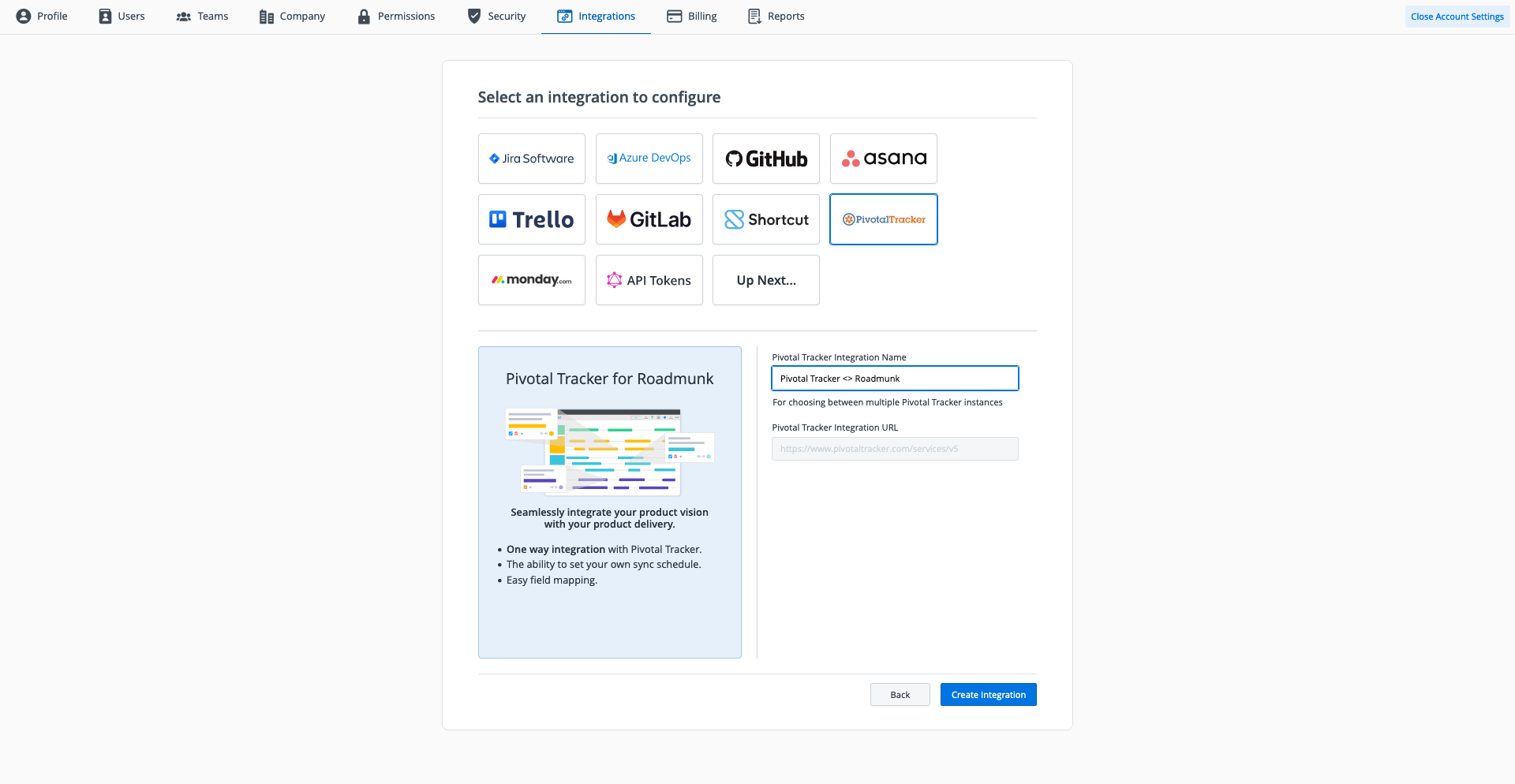

To create a new Pivotal Tracker integration in Roadmunk:
- Click into your avatar in the bottom-left and navigate into the Account Settings menu.
- Once in Account Settings, navigate to the Integrations tab along the top.
- Select the + Add an integration button and choose Pivotal Tracker from the configuration menu.
- In the setup window that appears, enter the following details:
- Pivotal Tracker Integration Name: The reference name which describes to yourself and your team the Pivotal Tracker instance you're connecting to.
- Pivotal Tracker Integration URL is shown but cannot be edited due to the static nature of this pathway. Unlike other Roadmunk integrations, the instance being accessed is defined at the roadmap level, not the account level.
- Once these details have been entered, click the Create Integration button to finalize the setup.
Update an Existing Pivotal Tracker Integration
To update an existing Pivotal Tracker integration in Roadmunk:
- Click into your avatar in the bottom-left and navigate into the Account Settings menu.
- Once in Account Settings, navigate to the Integrations tab along the top.
- Select the Edit button in the Pivotal Tracker Integration you're looking to update.
- In the edit window that appears, the administrator who created the integration can update:
- Pivotal Tracker Integration Name: The reference name which describes to yourself and your team the Pivotal Tracker instance you're connecting to.
- Once these details have been changed, click the Update Integration button to finalize the setup. Changes are applied immediately for all users across the account.
Remove an Existing Pivotal Tracker Integration
To delete an existing Pivotal Tracker integration in Roadmunk:
- Prior to deletion, ensure that no roadmaps are currently using this particular integration.
- Click into your avatar in the bottom-left and navigate into the Account Settings menu.
- Once in Account Settings, navigate to the Integrations tab along the top.
- Select the Delete button in the Pivotal Tracker integration you're looking to remove.
- Once selected, the integration will be deleted immediately and will be removed from the menu.
Generating Credentials for Roadmunk in Pivotal Tracker
In order to authorize the data transfer between Roadmunk and Pivotal Tracker, Roadmunk relies on a user-generated credential which allows the user to view and pull their data from their projects. In this case, we require the API Token provided in your Profile page on Pivotal Tracker as your credential and during the roadmap setup will allow you to set a Credential Label so you can easily differentiate this particular token from others you may use (in the case of teams working across multiple active Pivotal Tracker deployments).
Users can generate a Personal Access Token from the Settings menu in Pivotal Tracker. For more details see Pivotal Tracker's article on creating an API Token.

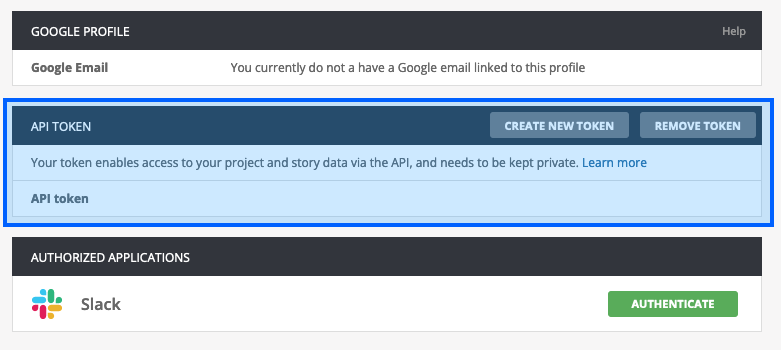

- In Pivotal Tracker, click on your avatar and select your name in the top right corner
- In the dropdown menu, slect Profile
- Scrolling to the bottom of the page, you can view your API Token in the section of the same name.
For the sake of user & data security, tokens can be reset (Create New Token) or removed (Remove Token) from your Profile page.
Connecting your Roadmaps to Pivotal Tracker
Integrations Setup Walkthrough
It's a quick and easy process to set up an integration between your Pivotal Tracker projects and your team's roadmaps in Roadmunk. The setup process can be broken down into three stages: triggering the integration, applying synchronization settings, and applying field and filter settings. Once those have been completed, your roadmap will be set to pull and visualize data from Pivotal Tracker as needed.
Step 1 - Triggering the Roadmap Integration

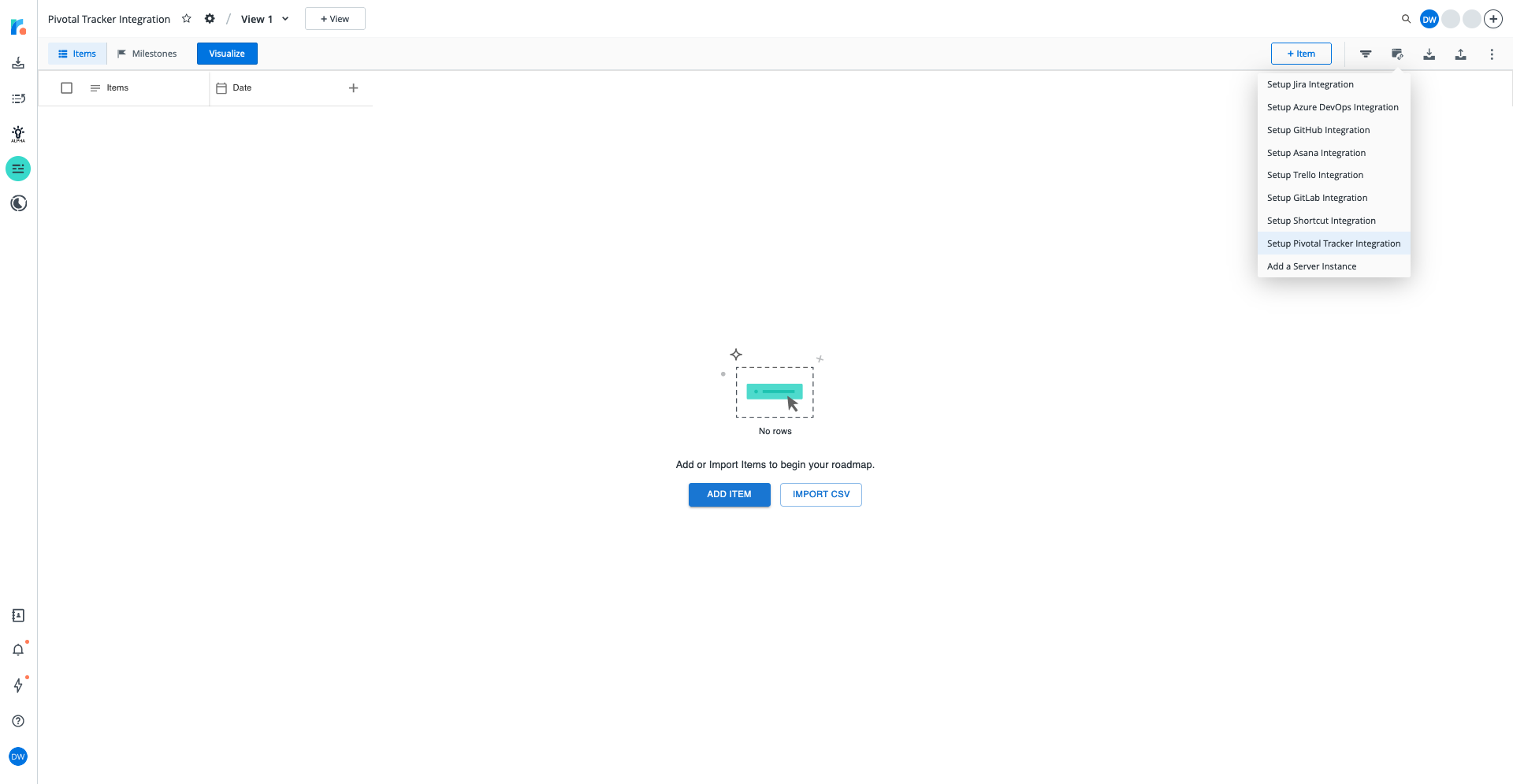

Once the integration connector has been setup by your Account Admin, you will be able to select the Setup Pivotal Tracker Integration option in the Integrations tool on your roadmap. Triggering this integration will not overwrite your existing data; however, once you've linked a roadmap to a project you are unable to remove that connection or change the specified project.

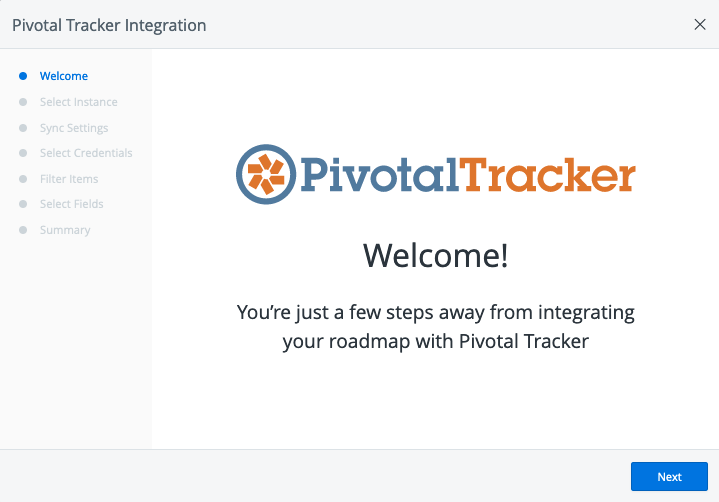

This option will activate a setup wizard which will walk you through the process of connecting your roadmap to a specific project in Pivotal Tracker to act as a data source for your roadmap.
Step 2 - Applying Synchronization Settings
Once in the setup wizard, you will be prompted to follow the preset workflow to complete the integration. In the first phase of this workflow, you will have the option to select which Pivotal Tracker connector you would like to pull project data through, the synchronization direction (one-way, at this time), and the automatic sync cadence (default is set to 12 hours).
Step 3 - Applying Credentials, Field & Filter Settings

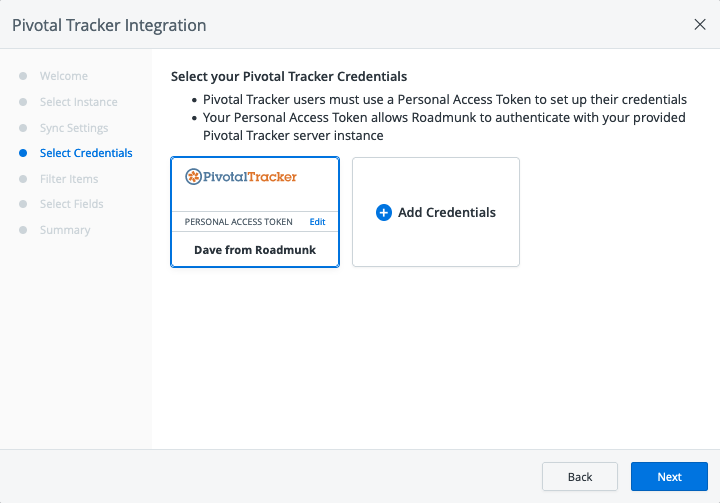

Once your instance has been selected, you'll be prompted to choose your credentials for syncing with Pivotal Tracker. If you haven't previously setup credentials to sync with, please enter the API Token (labelled "Personal Access Token") that was generated in the steps above and apply a Credential Label for future reference.

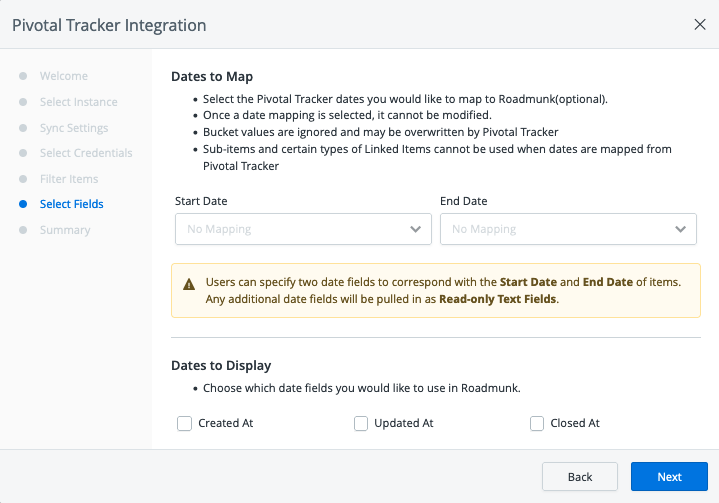

After these details above have been provided, you will be able to select the project you would like to pull data from and the state of issues being pulled to bring in only the relevant content is being pulled. Once these settings have been applied, you'll be able to specify Start Date & End Date and select the Pivotal Tracker fields to use on your roadmap. While the specified project can't be changed after the setup, the user-defined dates and fields can be updated later if needed.
Once you've completed this phase of the setup, you'll be taken to a confirmation screen to let you know that the integration has been setup successfully. After completing the setup wizard, you'll be returned to the roadmap view where your data will begin to populate from your specified Pivotal Tracker project.
What to Expect After Integrating
Once you've integrated your data from Pivotal Tracker, there will be a few changes to your roadmaps. The following changes may occur after you've setup your integration:
- All fields pulled from Pivotal Tracker are Account-Level by default - Since the properties and values of these synchronized fields are managed in Pivotal Tracker, we automatically promote them to account-level so they can be accessible as common fields in Portfolio roadmaps.
- There is an External ID field that appears in the Items Table view - When synchronizing data from Pivotal Tracker, we pull in the ID of each task for reference on your roadmap. This is clickable and linked out to your team's Pivotal Tracker instance, so you can quickly access the respective work item from either your Table view and Item Card.
- Unable to change or add new projects on a single roadmap - As with our other integrations, we limit connections between roadmaps and third-party tools to be a 1:1 connection. This means that you will be unable to sync multiple projects into a single roadmap; however, you will be able to create multiple roadmaps for each project and use those as sources in a Portfolio roadmap.
- Additional Date fields will be read-only - Due to a variance in field formatting between Roadmunk and Pivotal Tracker, any additional Date fields selected which are not mapped to Start and End Dates will be pulled in as read-only text fields.
- Tokens may expire a set number of days after being created - Unlike API tokens generated for credentials in other tools, API Tokens generated in Pivotal Tracker are expired and refreshed when your password is changed. For accounts with Enterprise password requirements that may have to change on a regular cadence, please be aware that this may impact your integration with Pivotal Tracker.
Modifying Pivotal Tracker Integration Setup

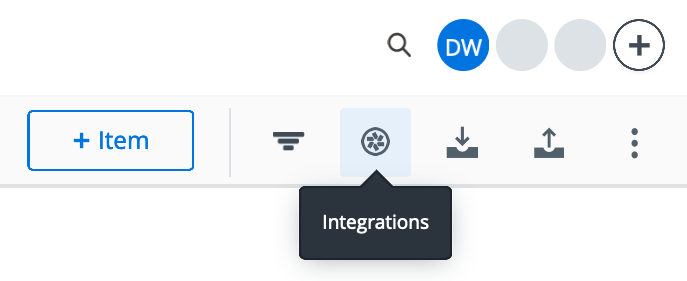

Once the initial integration setup is complete, the roadmap owner will be able to modify the setup at any time. To do so, from the Items Table or in a roadmap visualization, simply click the Pivotal Tracker button (which replaced the Integrations button) in the roadmapping toolbar and select "Modify Setup" from the drop-down menu. This will open the integration setup menu and you can update sync settings, credentials, filter work items, and select fields.
